| Author |
|
CJ Romeo
Corleone
Fav/helpful member 05/07, runner-up 2006
Joined: 15 January 2004
Location: Scotland
Online Status: Offline
Posts: 15720
|
| Posted: 19 February 2009 at 10:06 | IP Logged
|
|
|
Here is the 210 fuel rail, as you'll see, the layout is totally different and the issue doesnt exist - as that hose isnt there!
So far then, the 210 has a different turbo, manifold fuel rail, engine wiring loom, pipework and ECU.
Some dealers still think its just a remap though!
__________________
2008 Alfa Romeo 159 Ti
|
| Back to Top |
|
| |
alfce
Junior Alfisti
Joined: 27 October 2006
Location: Isle Of Man
Online Status: Offline
Posts: 2108
|
| Posted: 03 March 2009 at 19:57 | IP Logged
|
|
|
well another update,
had to hassel simonstone about the pipe problem
they are now blaming the pipe is failing because my engine cover is not fitted proply
they have given me this quote,
parts number, description, ; price exc vat.
13125570 &nbs p; collar &nb sp; &nb sp; £1.04
51769523 &nbs p; cover &nbs p; &nbs p; £70.71
55193045 flex sleeve &nbs p; £11.89
71747919 elastic pad & nbsp; £6.00
so add on %15 vat & labour,
approx = £160.
well i am going to tape up the pipe further, to keep it going,
i am going to get a second opinion,
& search for more jtdm,s with the same problem, i am not going to pay that!.
Edited by alfce on 03 March 2009 at 20:00
__________________
location , isle of man or north somerset.
ex 03 plate 156 2.4jtd x 2
ex 54 plate 156 1.9 jtd m-jet
ex 52 plate 156 1.8 t- spark
ex 06 plate 159 2.4 jtdm.
|
| Back to Top |
|
| |
Prizam
Senior Alfisti
Pin 08
Joined: 03 May 2004
Location: United Kingdom
Online Status: Offline
Posts: 11231
|
| Posted: 23 July 2009 at 01:00 | IP Logged
|
|
|
Just get a new pipe and modify the engine cover ?
__________________
My Web Site
|
| Back to Top |
|
| |
Smaky
Junior Alfisti
Joined: 20 February 2009
Location: United Kingdom
Online Status: Offline
Posts: 574
|
| Posted: 24 December 2009 at 20:01 | IP Logged
|
|
|
I can let you know that this problem occurs on the 200Bhp 2.4 fitted to all these cars:
Fiat Croma 2005 -
Lancia Thesis 2001 - 2007
Alfa 159 2005 -
Alfa 166 2001 - 2007
Alfa Brera 2005 -
Alfa Spider 2006 -
And the fix is to dremel away the cover around where the hose runs. It's a pretty standard fix that all dealers should be aware of now.
__________________
If your near Wiltshire, UK then I can help you in person.
Alfa trained R&D technician to the stars.
p.s. pronounced Smack e
146 1.6TS, 146 Ti and 156 Sele.
|
| Back to Top |
|
| |
robetadrake
Junior Alfisti
Joined: 23 January 2010
Online Status: Offline
Posts: 1
|
| Posted: 23 January 2010 at 21:45 | IP Logged
|
|
|
Hi All,

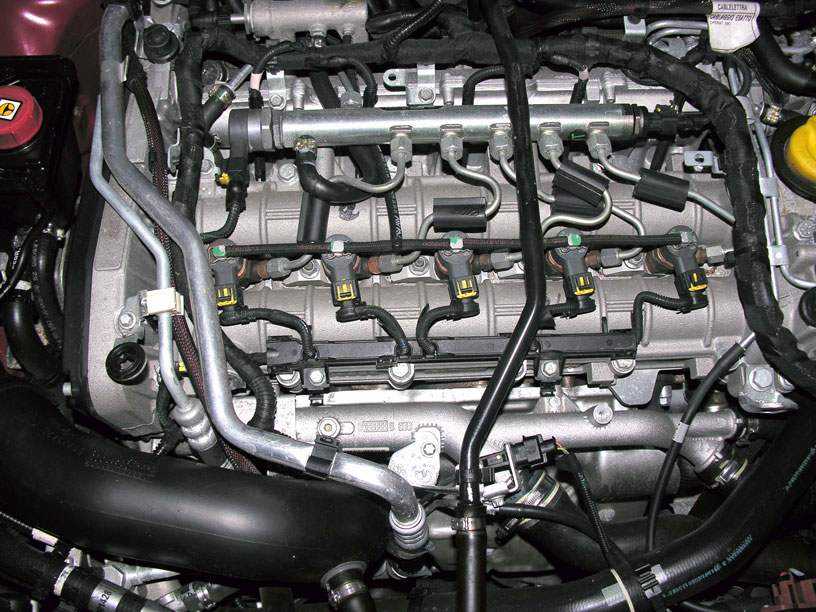

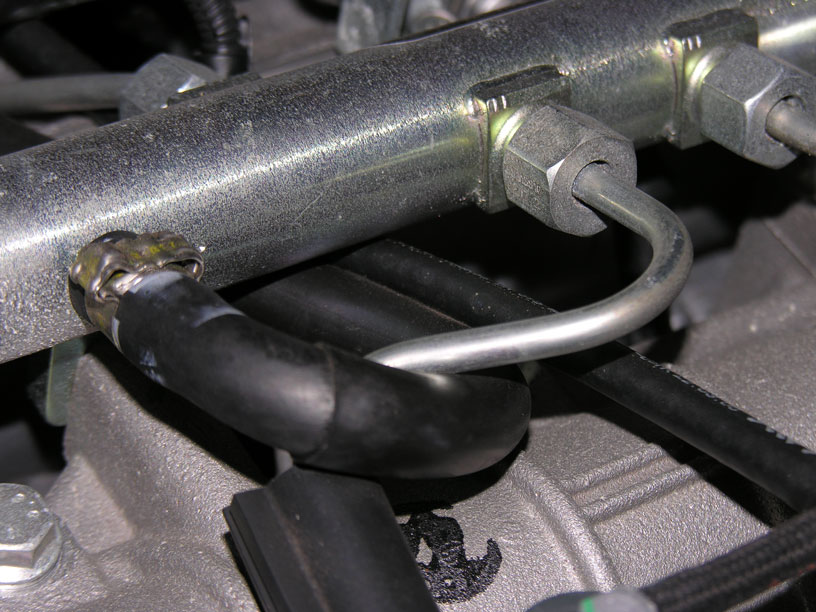

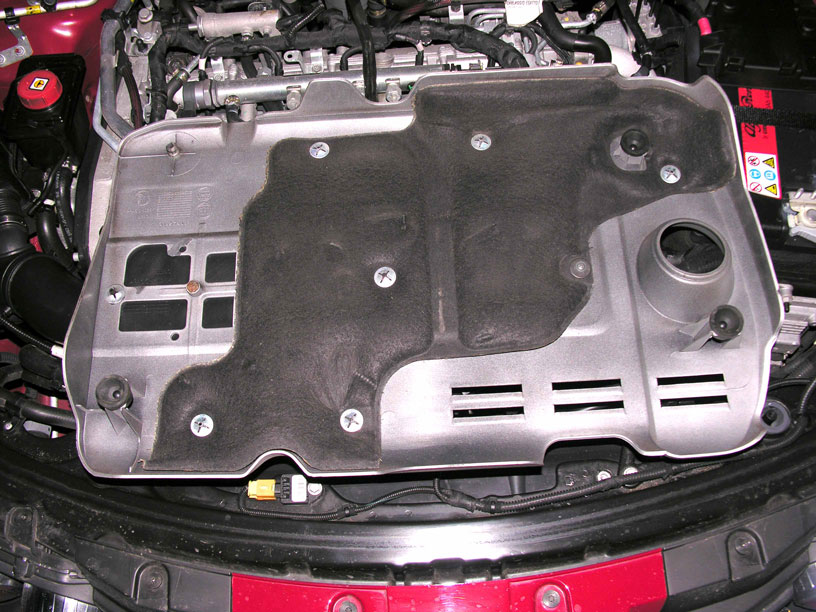

Just thought I'd check this on mine as im on ~15K now and although I do not have the wear on the hose I do have a little wear on the Aircon pipe and on the pipe to the right of the hose. The picture of the engine cover shows where the aircon pipe is rubbing.
Out of intrest what is the bit they dremel off to stop the rubbing on the hose as mine appears to be pretty flat?
Regards
Rob
Edited by robetadrake on 23 January 2010 at 21:46
|
| Back to Top |
|
| |
CJ Romeo
Corleone
Fav/helpful member 05/07, runner-up 2006
Joined: 15 January 2004
Location: Scotland
Online Status: Offline
Posts: 15720
|
| Posted: 23 January 2010 at 23:03 | IP Logged
|
|
|
robetadrake wrote:
Hi All,
Just thought I'd check this on mine as im on ~15K now and although I do not have the wear on the hose I do have a little wear on the Aircon pipe and on the pipe to the right of the hose. The picture of the engine cover shows where the aircon pipe is rubbing.
Out of intrest what is the bit they dremel off to stop the rubbing on the hose as mine appears to be pretty flat?
Regards
Rob
|
|
|
Rob, mine is the same as yours - a different issue to the first one!
__________________
2008 Alfa Romeo 159 Ti
|
| Back to Top |
|
| |
alfce
Junior Alfisti
Joined: 27 October 2006
Location: Isle Of Man
Online Status: Offline
Posts: 2108
|
| Posted: 02 February 2010 at 15:59 | IP Logged
|
|
|
CJ Romeo wrote:
robetadrake wrote:
Hi All,
Just thought I'd check this on mine as im on ~15K now and although I do not have the wear on the hose I do have a little wear on the Aircon pipe and on the pipe to the right of the hose. The picture of the engine cover shows where the aircon pipe is rubbing.
Out of intrest what is the bit they dremel off to stop the rubbing on the hose as mine appears to be pretty flat?
Regards
Rob
|
|
|
Rob, mine is the same as yours - a different issue to the first one! |
|
|
sorry cj, thats a 200bhp one same what mine was,
but what i have observed is that rob,s has a rubber piece on the pipe that feeds to the injector level with my frayed pipe, as can be seen on pics mine is missing, why i do not know but that could be a contribution to my pipe fraying.
__________________
location , isle of man or north somerset.
ex 03 plate 156 2.4jtd x 2
ex 54 plate 156 1.9 jtd m-jet
ex 52 plate 156 1.8 t- spark
ex 06 plate 159 2.4 jtdm.
|
| Back to Top |
|
| |
